1000N Material Ultimate Tensile Testing Equipment.

1000N Material Ultimate Tensile Testing Equipment.
1000N Material Ultimate Tensile Testing Equipment. 1000N Material Ultimate Tensile Testing Equipment.

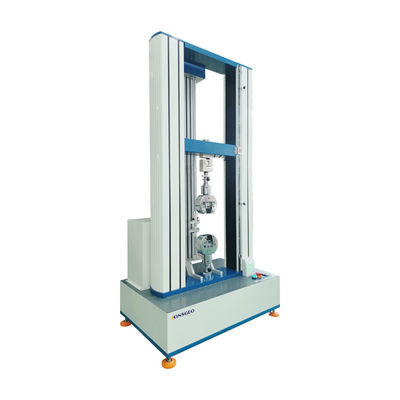

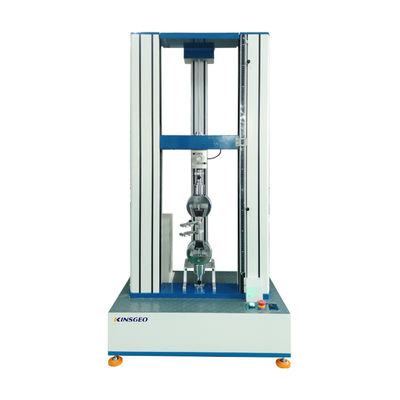

Imagem Grande :  1000N Material Ultimate Tensile Testing Equipment.

Detalhes do produto:
Lugar de origem: China
Marca: KINSGEO
Certificação: CE/ISO
Número do modelo: KJ-1066B
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: USD/4800/SET
Tempo de entrega: 15 dias de trabalho
Termos de pagamento: T/T, D/P
Habilidade da fonte: 60 conjuntos/mês
Descrição de produto detalhada
Poder: Eletrônico, hidráulico, AC220V 50Hz Uso: Máquina de teste universal
Peso: 216KG Nome do produto: Máquina de ensaio de tração universal de servidor de computador 10T preço
Fonte de energia: pode ser personalizado, 220V 50Hz Aplicação: testador universal
Padrão: Bs.en.astm Motor: Motor de servo da Panasonic
Garantia: 1 ano Precisão: +/- 0,5%
Nome: Máquina de teste universal Capacidade: 200
AVC: 650mm (excluindo o grampo) Resolução: 1/250
Espaço de teste: 120mmMAX Medição de precisão: O valor ±1%/o Value±0.5%
Faixa de medição efetiva: 00,2% ~ 100% (grado 1) / 0,4% ~ 100% (grado 5) Operação: Operação das janelas do computador

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,

film,solar cell,etc.

Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.

2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.

3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.



Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.



Model KJ-1066B
Range of speed 50-500mm/min
Motor AV Servo Motor
Capacity choice 2000KG
Resolution 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150㎝
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
