| modelo: | KJ-1065A | Escala da velocidade: | 0.5-500mm/min |
|---|---|---|---|
| Dimensão: | (W×D×H) 58×58×125cm | Especs. eficazes dos testes: | 120mmMAX |
| Aplicação: | esparadrapo, de borracha, plástico, de couro, dobra, tesoura e etc. | Poder: | 1PH, AC220V, 50/60Hz |
| Realçar: | 100N 500N Universal Testing Machines,ISO 500N Universal Testing Machines,100N 500N peel strength testing |
||

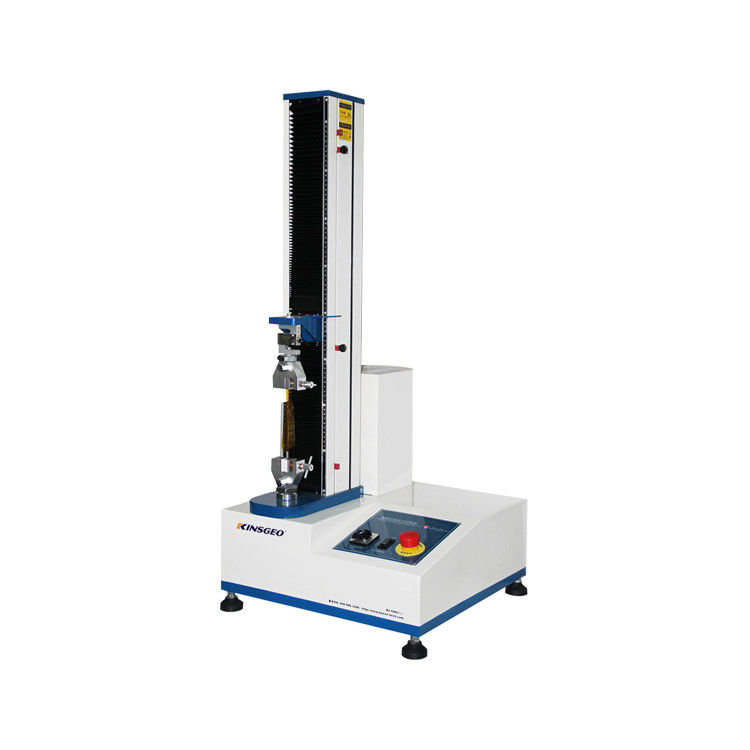

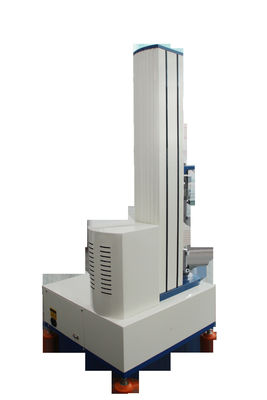

100N 500N Universal Tape Peel Strength Testing Machines Equipment
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D5733, ASTM D2261,ASTM D3330,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D5034, ASTM D4632
Introduction:
This Tensile Strength Testing Machine is designed for compression, bending, quick and reliable tensile, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
KJ-1065A Peel textiles Shear Universal Tensile Tes...
Character:
1. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performance, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
Technical parameter:
| Model | Computer Universal Tensile Testing Machine |
| Max load | 50N,100N,200N,500N, 1KN, 2KN (optional) |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Tolerance ±1%/tolerance ±0.5% |
| Tester resolution | Max load 1/200000, and constant resolution |
| Load sensor | Basic configurationsensormax load:from four sensors to choose one |
| Effective tensile stroke | 800mm (can be widened according to customers requirement ) |
| Effective testing width | 300mm |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control), can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| Fixture | A set of tensile fixture |
| Machine size | 650*360*2100mm (L*W*H) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Temperature range | From normal temperature to 200 degree |
| Temperature display | Digital display |
| Inside space | 200*300*500mm (W*L*H ) |
| Cooling system | Compression from France |
| Power supply | 220V50HZ or according to the requirement |
| Power | 0.4KW ( depending on different demand of force, using different motor) |
| Weight | 150 Kg |
Accessories
1. Suitable Grips that meet customer sample need.
2. Special peeling tools for peel test in tape&film industry.
3. Software for test control,data acquisition and report.
4. English operation teach video.
5. Tabal,computer is selectable.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Service:
Onsite Service:
1. Device installation 2. Equipment Operation Test Technology training 3. Equipment Calibration 4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction;2. Product operation instruction/video;3. Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
